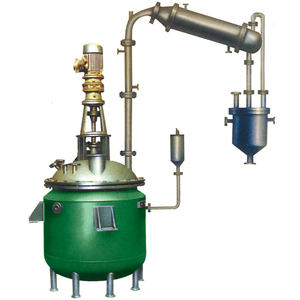

不飽和聚酯樹脂設備主要技術參數
| 樹脂設備 | 豎式分餾柱 | 豎式冷凝器 | 臥式冷凝器 | 分水器 | ||
| 規格(L) | 規格 | 規格(m2) | 規格(m2) | 容積(L) | 規格 | 容量(L) |
| 50 | ￠76×500 | 0.2 | 0.4 | 50 | ￠200×250 | 10 |
| 100 | ￠108×500 | 0.4 | 0.6 | 100 | ￠250×300 | 15 |
| 200 | ￠133×550 | 0.6 | 1 | 200 | ￠350×400 | 40 |
| 300 | ￠159×600 | 0.9 | 1.5 | 300 | ￠400×450 | 60 |
| 500 | ￠219×700 | 0.6 | 2.5 | 500 | ￠450×450 | 75 |
| 1000 | ￠273×800 | 1 | 4 | 1000 | ￠450×500 | 85 |
| 1500 | ￠273×850 | 1.5 | 6 | 1500 | ￠500×500 | 100 |
| 2000 | ￠325×1000 | 2 | 8 | 2000 | ￠500×600 | 120 |
| 3000 | ￠325×1000 | 3 | 12 | 3000 | ￠600×650 | 200 |
| 5000 | ￠377×1200 | 5 | 20 | 5000 | ￠650×650 | 230 |
| 6000 | ￠377×1200 | 6 | 25 | 6000 | ￠650×700 | 250 |
| 8000 | ￠426×1300 | 8 | 32 | 8000 | ￠700×700 | 280 |
| 10000 | ￠426×1500 | 10 | 40 | 10000 | ￠800×1000 | 500 |
| 12000 | ￠480×1600 | 10 | 48 | 12000 | ￠800×1200 | 600 |
| 15000 | ￠480×1800 | 12 | 60 | 15000 | ￠900×1000 | 650 |
| 18000 | ￠530×2000 | 15 | 72 | 18000 | ￠1000×1200 | 1000 |
| 20000 | ￠530×2000 | 15 | 80 | 20000 | ￠1200×1200 | 1500 |
